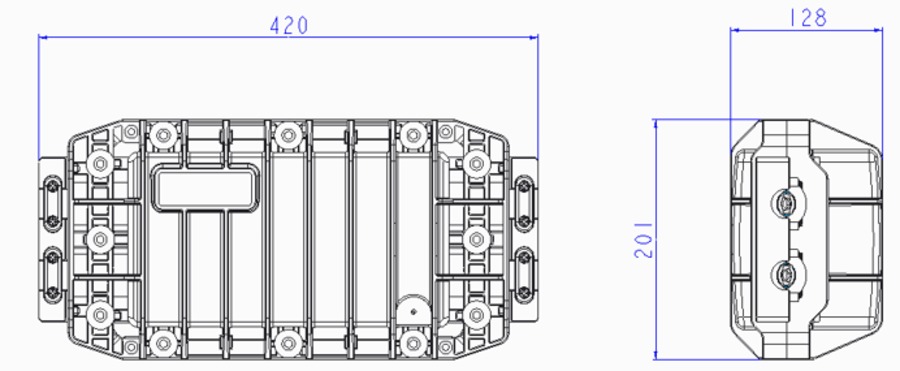

Dimension (mm)	420×201×128 ; Max. capacity (single fiber) : 96
Weight (kg)	2.6 ~ 3.0 ; Sealing type : Mechanical
No. entry cable	4 (2 in & 2 out) ; Capacity of Tray (Single fiber) : 24
Suitable cable diameter(mm)	¢10~¢20 ; Maximum number of trays : 4
Sealing method:	Mechanical sealing
Body material:	PP and fiber glass
Storage temperature:	-45°C~+65°C; Working temperature: -45°C ~+65°C
Splice case:	External diameter shall be between 150mm to 175mm and overall length of not exceeding 500mm
